HS3000 Series Microphones


Untitled Document


 The HS3010 kit consists of:
  HS3000 Pre-amplifier
  HS10 Detachable omni capsule
  HSstudio Plastic studio "click closed" case
  HSmc Microphone clip
  HSavm Anti-vibration mount

Lockable metal flightcase

 Also Available:
  HS20 Cardioid capsule
    HS30 Hyper-cardioid capsule
    HS40 Sub-cardioid capsule
omni studio condenser microphone
  Sensitivity: -32dBv/Pa (nominal)
  Polar Pattern: Omni

Click here for full spec sheet
  General Specification
  System:   Detachable capsule

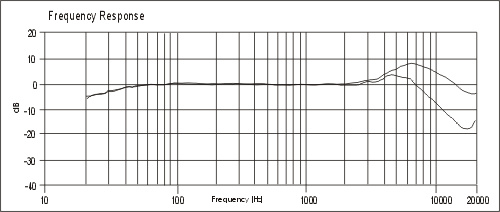

  Frequency response:   20Hz - 20kHz (pre-amp 20Hz - 100kHz)
  Max output @1kHz:*   +4dBv; 135dB SPL. (-2dBv; 129dB SPL)
  Self noise:   ~17dBA
  Impedance:   <600ohms
  Connector:   3 pin gold plated male XLR
  Power:   12-48v Phantom power
  Output:   Electronically balanced
  Dimensions:   160mm x 23mm dia
      Pre-amp 132 x 23 dia; capsule 35 x 23 dia
  Weight:   290g (pre-amp 265g; capsule 25g)
  * max output reduced at 12v.
