HS3000

 The HS3000 kit consists of:
HS3000 Pre-amplifier

 Also Available:
HS10 Omni-directional capsule
HS20 Cardioid capsule
HS30 Hyper-cardioid capsule
HS40 Sub-cardioid capsule

phantom-power microphone preamplifier


  Sensitivity: -32dBv/Pa (nominal)



Click here for full spec sheet


  General Specification
  System:   Detachable capsule

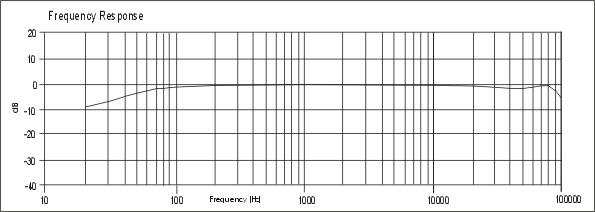

  Frequency response:   20Hz - 20kHz (pre-amp 20Hz - 100kHz)
  Max output @1kHz:*   +4dBv; 135dB SPL. (-2dBv; 129dB SPL)
  Self noise:   ~17dBA
  Impedance:   <600ohms
  Connector:   3 pin gold plated male XLR
  Power:   12-48v Phantom power
  Output:   Electronically balanced
  Dimensions:   160mm x 23mm dia
      Pre-amp 132 x 23 dia; capsule 35 x 23 dia
  Weight:   290g (pre-amp 265g; capsule 25g)
  * max output reduced at 12v.
